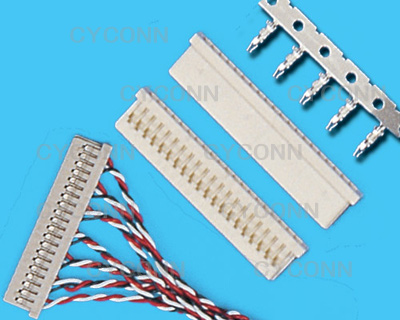

1.产品描述Product description :
间距Pitch: 1.25mm
极数Pole: 2-30poles
颜色Color:米色Beige
2.技术参数Technical parameter :
额定电压Rate Voltage: 150V AC,DC
额定电流Rate Current: 1A (28AWG)
耐压值Withstand Voltage: 500V AC/minute
接触阻抗Contact Resistance: 30mΩ(MAX.)
绝缘阻抗Insulation Resistance: 500MΩ(MIN.)
工作温度范围Temperature Range: -35℃~+85℃
应用线规Applicable Wire Range: UL1571orUL1061 28AWG~32AWG
常用线规Common Wire Range: UL1061 30AWG
3.材料Material :
端子Terminal:磷青铜 Phosphor bronze
塑壳Housing:Nylon66(UL94V-0)
4.包装方式Packaging:
端子Terminal:20000PCS/R
塑壳Housing:1000PCS/BAG
配线包装:袋装 Bage Package
扎把 Banding
