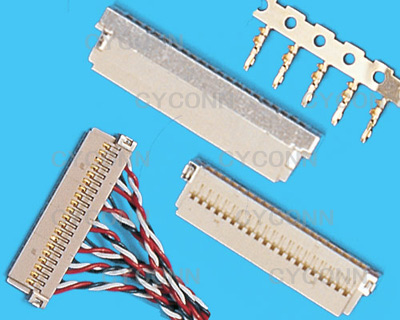

1.产品描述Product description :
间距Pitch: 1.0mm
极数Pole: 2-15poles
颜色Color:白色White
2.技术参数Technical parameter :
额定电压Rate Voltage: 50V AC,DC
额定电流Rate Current: 1A (28AWG)
耐压值Withstand Voltage: 500V AC/minute
接触阻抗Contact Resistance: 20mΩ(MAX.)
绝缘阻抗Insulation Resistance: 100MΩ(MIN.)
工作温度范围Temperature Range: -25℃~+85℃
应用线规Applicable Wire Range: UL1571orUL1061 28AWG~32AWG
常用线规Common Wire Range: UL1571 30AWG
3.材料Material :
端子Terminal:磷青铜 Phosphor bronze
塑壳Housing:PBT(UL94V-0)
针座Wafer:PA46(UL94V-0)/Nylon 6T (UL94V-0)
4.包装方式Packaging:
端子Terminal:10000PCS/R
塑壳Housing:1000PCS/BAG
针座Wafer:管装Pipe Package
编带包装Tape and Reel Package
配线包装:袋装 Bage Package
扎把 Banding
|
 |
