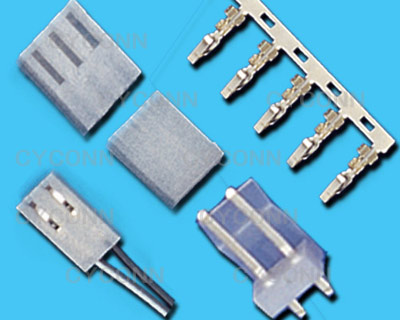

1.产品描述Product description :
间距Pitch:3.96mm
极数Pole:2-16poles
颜色Color:透明Transparent
2.技术参数Technical parameter :
额定电压Rate Voltage: 250V AC,DC
额定电流Rate Current: 6A (18AWG)
耐压值Withstand Voltage: 1500V AC/minute
接触阻抗Contact Resistance: 10mΩ(MAX.)
绝缘阻抗Insulation Resistance: 1000MΩ(MIN.)
工作温度范围Temperature Range: -25℃~+85℃
应用线规Applicable Wire Range: UL1007orUL1015 24AWG~18AWG
常用线规Common Wire Range: UL1007 18AWG or UL1015 20AWG
应用P.C.B厚度Applicable P.C.B Thickness: 1.6mm
应用P.C.B孔径Applicable P.C.B Hole Dia.: ø1.75±0.05mm
3.材料Material :
端子Terminal:磷青铜 Phosphor bronze/黄铜Brass
塑壳Housing:Nylon66 UL94V-0
针座绝缘体Wafer Insulator:Nylon66 UL94V-0
针座导体Wafer Contactr:黄铜Brass
4.包装方式Packaging:
端子Terminal:6000PCS/R
塑壳Housing:1000PCS/BAG
针座Wafer:1000PCS/BAG
配线包装:袋装 Bage Package
扎把 Banding
|
 |
