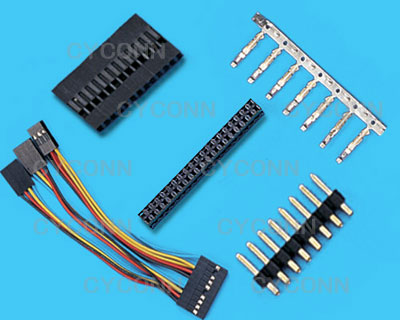

CY2009条形连接器
1.产品描述Product description :
间距Pitch:2.54mm
极数Pole:2-40poles
颜色Color:黑色Black
2.技术参数Technical parameter :
额定电压Rate Voltage: 250V AC,DC
额定电流Rate Current: 2.5A (22AWG)
耐压值Withstand Voltage: 800V AC/minute
接触阻抗Contact Resistance: 20mΩ(MAX.)
绝缘阻抗Insulation Resistance: 1000MΩ(MIN.)
工作温度范围Temperature Range: -25℃~+85℃
应用线规Applicable Wire Range: UL1007 22AWG~28AWG or UL2468 24AWG~26AWG
常用线规Common Wire Range: UL1007 24AWG or UL2468 24AWG
应用P.C.B厚度Applicable P.C.B Thickness: 1.6mm
应用P.C.B孔径Applicable P.C.B Hole Dia.: ø1.2±0.05mm
3.材料Material :
端子Terminal:磷青铜 Phosphor bronze
塑壳Housing:Nylon66+30%GF UL94V-0
针座绝缘体Wafer Insulator:PBT30%GF UL94V-0
针座导体Wafer Contactr:黄铜Brass
4.包装方式Packaging:
端子Terminal:10000PCS/R
塑壳Housing:1000PCS/BAG
针座Wafer:1000PCS/BAG
配线包装:扎把 Banding
